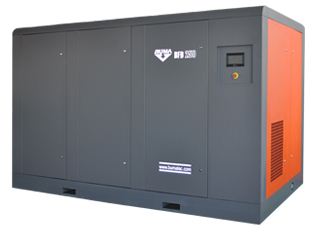

BWD Series Direct Water Cooling Type Specification
Model | Motor Power | Flow Meter | Pressure | Lub Oil | Outlet
Diameter | Dimension | Weight |
(kW) | (HP) | (m³/ min) | (bar) | (ℓ) | L x W x H (mm) | (Kg) |
BWD 55 | 55 | 75 | 10.3 | 7 | 30 | G2＂ | 2100ⅹ1300ⅹ1580 | 1900 |
9.6 | 8 |
8.7 | 10 |
7.5 | 13 |
BWD 75 | 75 | 100 | 13.5 | 7 | 35 | 2000 |
12.5 | 8 |
11.2 | 10 |
10.0 | 13 |
BWD 90 | 90 | 125 | 16.3 | 7 | 40 | DN50 | 2200ⅹ1300ⅹ1580 | 2050 |
15.9 | 8 |
14.0 | 10 |
12.2 | 13 |
BWD 110 | 110 | 150 | 21.0 | 7 | 50 | DN65 | 2650ⅹ1700ⅹ1750 | 3400 |
20.0 | 8 |
17.0 | 10 |
14.8 | 13 |
BWD 132 | 132 | 180 | 23.5 | 7 |
22.5 | 8 |
21.0 | 10 |
18.0 | 13 |
BWD 160 | 160 | 220 | 28.0 | 7 | 60 | DN80 | 2800ⅹ1700ⅹ1750 | 4000 |
28.5 | 8 |
24.5 | 10 |
20.3 | 13 |
BWD 185 | 185 | 250 | 32.0 | 7 |
30.0 | 8 |
27.8 | 10 |
24.5 | 13 |
BWD 200 | 200 | 280 | 34.3 | 7 |
32.9 | 8 |
30.2 | 10 |
27.2 | 13 |
BWD 220 | 220 | 300 | 36.0 | 7 | 100 | DN100 | 3200ⅹ1980ⅹ1950 | 4900 |
34.2 | 8 |
30.2 | 10 |
27.8 | 13 |
BWD 250 | 250 | 340 | 43.5 | 7 |
41.8 | 8 |
38.0 | 10 |
34.5 | 13 |
BWD 315 | 315 | 425 | 57.6 | 7 | 220 | DN125 | 4200ⅹ2250ⅹ1950 | 6000 |
54.5 | 8 |
50.0 | 10 |
43.4 | 13 |
BWD 355 | 355 | 480 | 64.5 | 7 | 4290ⅹ2250ⅹ1950 | 6200 |
62.5 | 8 |
56.0 | 10 |
48.6 | 13 |
BWD 560 | 560 | 750 | 100.0 | 8 | 440 | DN200 | 3416ⅹ2288ⅹ2172 | 9200 |
86.0 | 10 |
