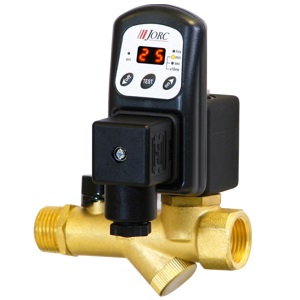

VAN XẢ NƯỚC TỰ ĐỘNG CÓ CÀI ĐẶT THỜI GIAN
Model: COMBO-D-LUX
Mã số: 2507
Kết nối ren: 1/2'' (21mm)
Áp làm việc max: 16 bar
Điện áp: 230V
The COMBO-D-LUX feature is a digital timer setting applied on time controlled condensate drains designed to automatically remove condensate from compressed air systems.
The COMBO-D-LUX is designed to remove condensate from compressors, compressed air dryers and receivers up to any size, type or manufacturer.
The COMBO-D-LUX is an all-in-one digital timer drain with an integrated ball valve and strainer.
The unit offers true digital time cycle programming luxury ranging from milliseconds to 99 hours.
SPECIFICATIONS
| MAXIMUM COMPRESSOR CAPACITY | Any size |
| PRESSURE RANGE | 0 - 16 bar (higher pressure available, see FLUIDRAIN-HP-S) |
| SUPPLY VOLTAGE OPTIONS | 12 - 230 VAC/DC 50/60Hz. (please indicate) |
| MEDIUM TEMPERATURE | 1 - 55 °C |
| AMBIENT TEMPERATURE | 1 - 55 °C |
| TIMER CYCLE RANGE (ON / OFF) | 0,01 second to 99 hours (both ON and OFF) |
| TIMER PCB | SMD technology, ensuring consistency in production |
| TIMER CYCLE INDICATION | Bright LED illumination, clear LED display |
| TEST FEATURE | Yes |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 4 mm |
| VALVE SEALS | FPM |
| INLET/OUTLET CONNECTIONS | 1/4" & 1/2″ (BSP or NPT) / 1/2" (BSP or NPT) |
| INLET CONNECTION HEIGHT | 1 cm |
| SERVICEABLE VALVE | Yes |
| VALVE HOUSING MATERIAL | Brass (Stainless steel available, see FLUIDRAIN) |
| POWER CONNECTION | DIN 43650-A |
| ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
FEATURES
Bright digital illuminated cycle display, offering you a visual display of current operating cycle.
igital processor, offering you exceptionally accurate cycle timing.
Wide time setting range, offering you application flexibility.
Does not air-lock during operation.
Suitable for all types of compressed air systems.
TEST (micro-switch) feature.
Private labelling possible.
Bright digital illuminated cycle display.
Does not air-lock during operation.
Suitable for all types of compressed air systems.
TEST (micro-switch) feature.
Private labelling possible.
Bright digital illuminated cycle display.
