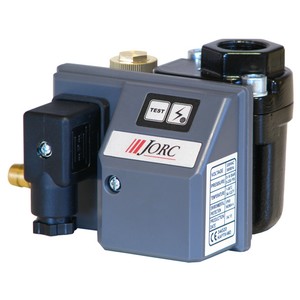

KAPTIV-MDElectronic zero air loss condensate drain
The KAPTIV-MD is a zero air-loss drain designed for smaller compressed air applications.
The KAPTIV-MD incorporates the reliable JORC direct acting valve assembly with FPM seals, offering a pressure range of 0 to 16 bar (up to 230 PSI).
The solid and robust aluminium housing design has also been incorporated in to this model, following suite with the larger KAPTIV models.
With an inlet connection height of only 74mm this is an incredibly compact solution with unrivaled installation versatility and reliability.
The weight of the KAPTIV-MD is only 0.5kg!
The maximum compressor capacity of this drain is 10 m3/min (350 CFM) and typical draining applications include fridge dryers and filters - mainly due to its incredible compact size.
SPECIFICATIONS
| MAXIMUM COMPRESSOR CAPACITY | 10 m³/min. |
| PRESSURE RANGE | 0 - 16 bar |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 2 mm |
| VALVE SEALS | FPM |
| INLET CONNECTION | 1/2″ (BSP or NPT) |
| INLET HEIGHT | 7.4 cm |
| OUTLET CONNECTION | 1/4″ BSP |
| MEDIUM TEMPERATURE | 1 - 50 °C |
| AMBIENT TEMPERATURE | 1 - 50 °C |
| SUPPLY VOLTAGE OPTIONS | 230VAC / 115VAC / 24VAC / 24VDC |
| POWER CONNECTOR | DIN 43650-B |
| SERVICEABLE VALVE | Yes |
| TEST FEATURE | Yes |
| ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
| INTEGRATED MESH STRAINER | Yes |
| HOUSING MATERIAL | Corrosion resistant aluminium, EP coating
|
FEATURES
Incredibly compact!
Integrated mesh filter.
JORC’s direct acting valve assembly, offering you reliability.
- Extremely compact and lightweight unit.
- True zero air-loss solution.
- One model covers all compressor capacities up to 10m³/min.
- No sizing chart required.
- The serviceable valve offers maintenance opportunities.
- Zero air-loss during the condensate discharge.
- Easy to install due to its low inlet height.
- External valve position allows for fast and easy maintenance.
- Direct acting valve with FPM seal.
- Robust corrosion resistant aluminium housing.
- Integrated mesh strainer.
- Personal branding opportunities.
