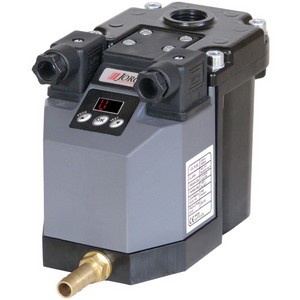

KAPTIV-CS-D-LUXElectronic zero air loss drain
The KAPTIV-CS-D-LUX is an electronically operated level sensed condensate drain that guarantees zero air-loss during the condensate discharge cycle.
This comprehensive, high-end condensate draining solution incorporates alarm options, service interval warning options and an anti-air-lock feature. All programming options can be easily selected and activated by using the touch buttons. The digital display feature indicates the selected option.
The KAPTIV-CS-D-LUX has a robust industrial housing and can be installed on all compressed air system components, regardless their size and climate zone.
Only 1 model required for all systems up to any compressor capacity. The alarm feature can be connected to the WARNER to never miss out on periodic maintenance opportunities.
SPECIFICATIONS
| MAXIMUM COMPRESSOR CAPACITY | 100 m³/min. |
| PRESSURE RANGE | 0 - 16 bar |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 4 mm |
| VALVE SEALS | FPM |
| INLET CONNECTIONS | 1/2″ (BSP or NPT), 3 inlet options |
| INLET HEIGHT | 11 cm (top) and 7.5 & 1.5 cm (side) |
| OUTLET CONNECTION | 1/4″ BSP |
| MEDIUM TEMPERATURE | 1 - 50 °C |
| AMBIENT TEMPERATURE | 1 - 50 °C |
| SUPPLY VOLTAGE OPTIONS | 230VAC / 115VAC / 24VAC / 24VDC |
| POWER AND ALARM CONNECTORS | DIN 43650-B |
| SERVICEABLE VALVE | Yes |
| TEST FEATURE | Yes |
| ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
| INTEGRATED MESH STRAINER | Yes |
| ALARM CONTACT OPTIONS | Alarm Normally Closed (NC) & Alarm Normally Open (NO) |
| HOUSING MATERIAL | Corrosion resistant aluminium |
FEATURES
Visual display of operating status.
Robust aluminium housing with three inlet options, offering you installation flexibility.
Integrated mesh strainer to protect the valve from clogging.
Capacitive level sensing technology saves air, energy and money.Bio/Anti-air-lock featureCompetitive compact zero air-loss draining solution.Alarm function (NO and NC) incorporated as a standard.No sizing charts required.The KAPTIV-CS-D-LUX can be connected to the WARNER or to any other alarm device.Visual display of operating status.Direct acting valve assembly, ensuring reliable discharge operation.
