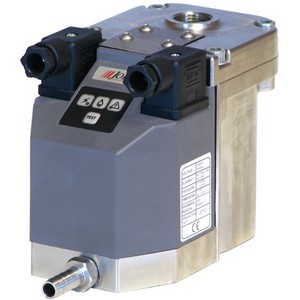

VAN XẢ NƯỚC TỰ ĐỘNG CẢM BIẾN MỰC NƯỚC CAO ÁP
HIỆU JORC_HÀ LAN
MODEL: KAPTIV-CS-HP-S
LƯU LƯỢNG: 100 M3/M
ÁP SUẤT: 0 - 50 BAR
LỖ XẢ NƯỚC: 4MM
KẾT NỐI REN VÀO: 1/2''
KẾT NỐI REN RA: 1/4''
ĐIỆN ÁP : 230VAC / 115VAC / 24VAC / 24VDC
THÂN VAN: INOX
The KAPTIV-CS-HP is a compact electronically operated level sensed condensate drain which offers zero air-loss during the condensate discharge cycle for applications up to 50 bar.
The KAPTIV-CS-HP is cost effective and offers a rapid pay-back period due to a competitive pricing level, low stocking cost, zero air-loss and energy saving aspects.
The KAPTIV-CS-HP can be installed in all compressed air system components up to 100 m³/min. regardless size and climate zone – only 1 model needed!
The robust industrial housing, the alarm feature and the 2/2 way direct acting valve assembly make the KAPTIV-CS-HP a Reliable solution for all compressed air system applications.
The KAPTIV-CS-HP offers an integrated mesh strainer (to prevent large particles from entering the valve orifice), is easy to disassemble and is service friendly.
SPECIFICATIONS
| MAXIMUM COMPRESSOR CAPACITY | 100 m³/min. |
| PRESSURE RANGE | 0 - 50 bar |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 1.8 mm |
| VALVE SEALS | FPM |
| INLET CONNECTIONS | 1/2″ (BSP or NPT), 3 inlet options |
| INLET HEIGHT | 11 cm (top) and 7.5 & 1.5 cm (side) |
| OUTLET CONNECTION | 1/4″ BSP |
| MEDIUM TEMPERATURE | 1 - 50 °C |
| AMBIENT TEMPERATURE | 1 - 50 °C |
| SUPPLY VOLTAGE OPTIONS | 230VAC / 115VAC / 24VAC / 24VDC |
| POWER AND ALARM CONNECTORS | DIN 43650-B |
| SERVICEABLE VALVE | Yes |
| TEST FEATURE | Yes |
| ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
| INTEGRATED MESH STRAINER | Yes |
| ALARM CONTACT OPTIONS | Alarm Normally Closed (NC) & Alarm Normally Open (NO) |
| HOUSING MATERIAL | Corrosion resistant aluminium |
FEATURES
Robust aluminium housing with three inlet options, offering you installation flexibility.
Integrated mesh strainer to protect the valve from clogging.
Extremely easy to disassemble, offering you maintenance speed and simplicity.
- Capacitive level sensing technology saves air, energy and money.
- Operating pressure up to 50 bar.
- Competitive compact zero air-loss draining solution.
- Alarm function (NO or NC) incorporated as a standard.
- No sizing charts required.
- The KAPTIV-CS-HP can be connected to the WARNER or to any other alarm device.
- Visual display of operating status.
- Direct acting valve assembly, ensuring reliable discharge operation.
