VAN XẢ NƯỚC TỰ ĐỘNG CÀI ĐẶT THỜI GIAN XẢ
HÃNG SẢN XUẤT: JORC
XUẤT XỨ: HÀ LAN
Model: EZ1
Mã số: 2303 (230 VAC, ½’’, 0-16 bar)
Mã số: 2323 (115 VAC, ½’’, 0-16 bar)
Để biết thêm thông tin chi tiết về sản phẩm: Hình ảnh, kích thước, giá và tồn kho
Vui lòng liên hệ:
Công ty TNHH Máy và Thiết Bị Khí Nén MPT
Hotline/ Zalo: 0919243248
Email: tam.hoang@congtympt.com
Website: www.congtympt.com

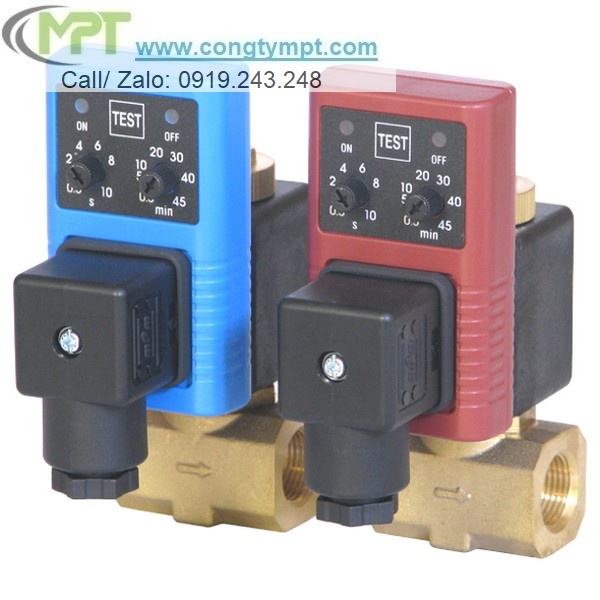

EZ-1 Electronic timer drain
The EZ-1 Timer Controlled Condensate Drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems.
The EZ-1 is designed to remove condensate from compressors, compressed air dryers and receivers up to maximum 16 bar applications.
The EZ-1 offers true installation simplicity at the lowest possible cost. The EZ-1 is a mass produced product available in various valve connection sizes and timer colour options.
FEATURES
Various timer housing colours, offering you branding possibilities.
Serviceable valve construction, offering your routine maintenance revenues.
Various connection sizes available, offering you installation flexibility without the need of adapters.
Does not air-lock during operation.
Any type of compressed air systems and up to 16 bar.
Competitive pricing levels available.
TEST (micro-switch) feature.
Private labelling and colour options are possible.
Accurate time cycles.
Large (4 mm) valve orifice.
Quick servicing advantage.
SPECIFICATIONS
| MAXIMUM COMPRESSOR CAPACITY | Any size |
| PRESSURE RANGE | 0 - 16 bar (higher pressure available, see FLUIDRAIN-HP-S) |
| SUPPLY VOLTAGE OPTIONS | 24 - 230 VAC/DC 50/60Hz. (please indicate) |
| MEDIUM TEMPERATURE | 1 - 55 °C |
| AMBIENT TEMPERATURE | 1 - 55 °C |
| TIMER CYCLE RANGE (ON / OFF) | 0.5 - 10 seconds / 0.5 - 45 minutes |
| TIMER PCB | SMD technology, ensuring consistency in production |
| TIMER CYCLE INDICATION | Bright LED illumination |
| TEST FEATURE | Yes |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 4 mm |
| VALVE SEALS | FPM |
| INLET/OUTLET CONNECTIONS | 1/4″, 3/8″, 1/2″ (BSP or NPT) |
| INLET CONNECTION HEIGHT | 1 cm |
| SERVICEABLE VALVE | Yes |
| VALVE HOUSING MATERIAL | Brass (Stainless steel available, see FLUIDRAIN) |
| POWER CONNECTION | DIN 43650-A |
| ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
