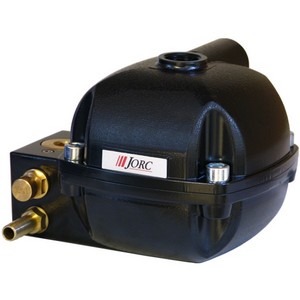

VAN XẢ NƯỚC TỰ ĐỘNG JORC - HÀ LAN (KIỂU PHAO)
Model: NUFORS-CR
Mã số: 3805
Lưu lượng cho máy nén khí 100m3/phút
Lỗ xả lên đến 6 mm
Áp làm việc max: 3-16 bar
Kết nối ren vào: 1/2'' (21mm)
Kết nối ren ra: 1/4''
Ứng dụng: Lắp đặt ở những chỗ cần xả lưu lượng lớn như (Máy sấy khí, Bình chứa khí, ...)
NUFORS-CRPneumatically operated level sensed condensate drain
The NUFORS-CR removes condensate from compressed air systems without using electricity.
The discharge process is automatic and is based on a newly developed 3/2 way level controlled valve principle that operates a piston type direct acting valve. The advantage of this valve principle is that the NUFORS-CR’s orifice can be 6 mm, offering an increased reliability factor.
The NUFORS-CR is ideally suited in applications where power is not available, too expensive or not reliable.
In addition, the NUFORS-CR can be applied in applications that demand a higher IP rating (International Protection rating or Ingresss Protection.
The NUFORS-CR offers an IP 68/NEMA 6 rating.
SPECIFICATIONS
| MAXIMUM COMPRESSOR CAPACITY | 100 m³/min. |
| PRESSURE RANGE | 3 - 16 bar |
| VALVE TYPE | Direct acting |
| VALVE ORIFICE | 6 mm |
| VALVE SEALS | FPM |
| INLET CONNECTIONS | 1/2″ (BSP or NPT), 3 inlet options |
| INLET HEIGHT | 12 cm (top), 9.7 cm and 1.5 cm (side) |
| OUTLET CONNECTION | 1/4" BSP with hose pipe connector |
| MEDIUM TEMPERATURE | 1 - 50 °C |
| AMBIENT TEMPERATURE | 1 - 50 °C |
| SERVICEABLE VALVE | Yes |
| TEST FEATURE | Yes |
| CONDENSATE SIGHT PORT | Yes, optionally available |
| INTEGRATED MESH STRAINER | Yes |
| HOUSING MATERIAL | Corrosion resistant aluminium |
| INGRESS PROTECTION | IP 68/NEMA 6 |
FEATURES
Integrated strainer to protect the valve.
TEST button feature for routine testing.
Sight port optionally available.
Competitive ‘true green’ solution.
No operating costs.
No electricity required - install and go!
Condensate viewing sight port optionally available.
Operating pressure up to 16 bar.
Reduced stocking costs - 1 model covers 100 m³/min.
Suitable for any type of compressed air system.
No complicated sizing charts required.
Compact and unique design.
Successful draining of condensate due to large orifice (also heavily emulsified condensate).
Incredibly easy and quick to install and to service.
No complicated external control air balance line required.
Integrated strainer.
Top and side inlets available.
TEST feature.
Robust aluminium housing.
Direct acting valve construction for a reliable condensate discharge operation.
