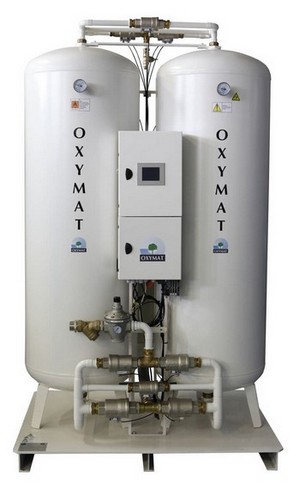

Máy tạo khí Oxy Oxymat, Model: O040 ECO
Máy nén khí Buma
Model: O040 ECO
Nhãn hiệu: OXYMAT
Xuất xứ: ĐAN MẠCH
Giá tham khảo: Liên hệ
Lượt xem: 1341
Download Bảng báo giá:
Download Catalogue:
Chia sẻ:

MÁY TẠO KHÍ OXY (O2), OXYMAT - ĐAN MẠCH

Our Oxygen Product range covers 45 standard models with capacity in the range from 0,7 to 409,81 m3/hour

Flow is meassured in Sm3/h and the performance is up to 95,0 % purity.

X-versions 3 to 6 are supplied as framebuilt solutions, buffer vessels, filters, Advanced control, dewpoint, pressure, temperature, flow, purity and remote monitoring included.

STANDARD MODEL:

Flow Sm³/hour *1Purity % *3

90%

92%

93%

94%

95%

O010 ECO

N/A

N/A

0.76

0.73

0.70

O020 ECO

N/A

N/A

1.73

1.67

1.60

O040 ECO

N/A

N/A

2.48

2.39

2.30

O060 ECO

N/A

N/A

3.49

3.36

3.23

O070 ECO

4.92

4.74

4.60

4.38

4.18

O100 ECO v1

7.28

7.00

6.80

6.48

6.18

O100 ECO v2

8.56

8.24

8.00

7.62

7.27

O170 ECO v1

10.70

10.30

10.00

9.52

9.09

O170 ECO v2

12.84

12.36

12.00

11.43

10.91

O230 ECO v1

15.52

14.94

14.50

13.81

13.18

O230 ECO v2

18.40

17.72

17.20

16.38

15.64

O330 ECO v1

21.40

20.60

20.00

19.05

18.18

O330 ECO v2

23.54

22.66

22.00

20.95

20.00

O330 ECO v3

26.75

25.75

25.00

23.81

22.73

O500 ECO v1

28.89

27.81

27.00

25.71

24.55

O500 ECO v2

33.17

31.93

31.00

29.52

28.18

O500 ECO v3

41.73

40.17

39.00

37.14

35.45

O500 ECO v4

47.08

45.32

44.00

41.90

40.00

O600 ECO v1

51.36

49.44

48.00

45.71

43.64

O600 ECO v2

58.85

56.65

55.00

52.38

50.00

O600 ECO v3

68.48

65.92

64.00

60.95

58.18

O800 ECO v1

80.25

77.25

75.00

71.43

68.18

O800 ECO v2

85.60

82.40

80.00

76.19

72.73

O600x2 ECO v1

120.91

116.39

113.00

107.62

102.73

O600x2 ECO v2

125.19

120.51

117.00

111.43

106.36

O800x2 ECO v1

139.10

133.90

130.00

123.81

118.18

O800x2 ECO v2

149.80

144.20

140.00

133.33

127.27

O800x2 ECO v3

176.55

169.95

165.00

157.14

150.00

O800x2 ECO v3

177.62

170.98

166.00

158.10

150.91

O600x3 ECO

214.00

206.00

200.00

190.48

181.82

O800x3 ECO v1

243.96

234.84

228.00

217.14

207.27

O800x3 ECO v2

254.66

245.14

238.00

226.67

216.36

O800x4 ECO v1

273.92

263.68

256.00

243.81

232.73

O800x4 ECO v2

326.35

314.15

305.00

290.48

277.27

O800x4 ECO v3

331.70

319.30

310.00

295.24

281.82

O800x5 ECO

417.30

401.70

390.00

371.43

354.55

O600x2 ECO Low Pres

119.84

115.36

112.00

106.67

101.82

O800x2 ECO Low Pres

145.52

140.08

136.00

129.52

123.64

O600x3 ECO Low Pres

171.20

164.80

160.00

152.38

145.45

O800x3 ECO Low Pres

214.00

206.00

200.00

190.48

181.82

O800x4 ECO Low Pres

288.90

278.10

270.00

257.14

245.45

O800x5 ECO Low Pres

342.40

329.60

320.00

304.76

290.91



Conversion rates for oxygen: 1 Sm3 = 1.31 kg, 1 Nm3 = 1.43 kg: 1 kg = 0.76 Sm3 & 0.70 Nm3

1 Sm3 = 0.92 Nm2

1 Nm3 = 1.09 Sm3



Notes:

*1 – Stated flow in Sm³/hour are for operation with reference to 15°C, 981 mbar.  Inlet pressure 7 barG. Flow variance ±5%

*2 – Stated air consumtions in FAD m³/min are for operation with reference to 20°C, 1 barA, -acc. to ISO1217c.

*3 – Purity variance ±1%

*4 -Capacity of the plant is stated at 30°C ambient air temperature. Variance±5%



Oxygen Generator System

3D Scheme

The PSA process is an extremely clean operation and the only ‘raw material’ is ‘air’. On-site generators allow for an uninterrupted supply of gas with a high purity output. This means that you can produce gas where and when you need it, and in the exact quantity and quality you need.

Oxygen system.JPG



How it works

At Oxymat, we use two columns with molecular sieves to ensure continuous production.

Dry compressed air is blown through a valve to the vessel where the pressure is built to reach 5 to 7 bar(g). Nitrogen is tied to a molecular sieve during the building of pressure, and the oxygen is allowed to pass through to the accumulation tank.

While pressure is build in one vessel, the second remains without pressure. A part of the produced gas is used for regeneration of the molecular sieve.

For Oxygen, Zeolite type 13X is used. The molecular sieve is fully regenerative and has a life span on to 40.000 operation hours.

Hinh 4.jpg

The entire PSA system can be subdivided into:

Compressed air system (Air compressor, Refrigeration dryer, Air receiver & Filters)

PSA skid, Oxygen receiver, Oxygen boosting & Filling Station (optional)

Optional supplies:

Panel Display with electro galvanized sensor, Touch Screen with zirconium sensor, GSM modem for touch Screen

Medical upgrade kit (Coalescing tower and bacterial filtration)
