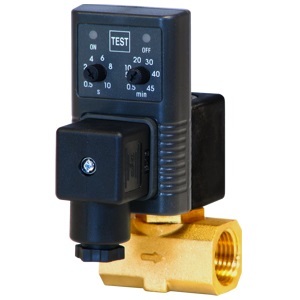

VAN XẢ NƯỚC TỰ ĐỘNG CÓ CÀI ĐẶT THỜI GIAN
Model: EZ1
Mã số: 2303
Kết nối ren: 1/2'' (21mm)
Áp làm việc max: 16 bar
Điện áp: 230V
Thời gian xả từ: 0.5 - 10 giây
Thời gian nghỉ từ: 0.5 - 45 phút
SPECIFICATIONS
| MAXIMUM COMPRESSOR CAPACITY | Any size |
| PRESSURE RANGE | 0 - 16 bar (higher pressure available, see FLUIDRAIN-HP-S) |
| SUPPLY VOLTAGE OPTIONS | 24 - 230 VAC/DC 50/60Hz. (please indicate) |
| MEDIUM TEMPERATURE | 1 - 55 °C |
| AMBIENT TEMPERATURE | 1 - 55 °C |
| TIMER CYCLE RANGE (ON / OFF) | 0.5 - 10 seconds / 0.5 - 45 minutes |
| TIMER PCB | SMD technology, ensuring consistency in production |
| TIMER CYCLE INDICATION | Bright LED illumination |
| TEST FEATURE | Yes |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 4 mm |
| VALVE SEALS | FPM |
| INLET/OUTLET CONNECTIONS | 1/4″, 3/8″, 1/2″ (BSP or NPT) |
| INLET CONNECTION HEIGHT | 1 cm |
| SERVICEABLE VALVE | Yes |
| VALVE HOUSING MATERIAL | Brass (Stainless steel available, see FLUIDRAIN) |
| POWER CONNECTION | DIN 43650-A |
| ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
FEATURES
Various timer housing colours, offering you branding possibilities.
Serviceable valve construction, offering your routine maintenance revenues.
Various connection sizes available, offering you installation flexibility without the need of adapters.
- Does not air-lock during operation.
- Any type of compressed air systems and up to 16 bar.
- Competitive pricing levels available.
- TEST (micro-switch) feature.
- Private labelling and colour options are possible.
- Accurate time cycles.
- Large (4 mm) valve orifice.
- Quick servicing advantage.
-
