VAN XẢ NƯỚC TỰ ĐỘNG CÀI ĐẶT THỜI GIAN XẢ
HÃNG SẢN XUẤT: JORC
XUẤT XỨ: HÀ LAN
Model: TEC-11
Mã số: 1000 (230 VAC, 1/8" BSP, 0-16 bar)
Mã số: 1020 (115 VAC, 1/8" BSP, 0-16 bar)
Mã số: 1060 (24 VAC, 1/8" BSP, 0-16 bar)
Mã số: 1080 (24 VDC, 1/8" BSP, 0-16 bar)
Mã số: 1003 (230 VAC, 1/4" BSP, 0-16 bar)
Mã số: 1023 (115 VAC, 1/4" BSP, 0-16 bar)
Mã số: 1063 (24 VAC, 1/4" BSP, 0-16 bar)
Mã số: 1083 (24 VDC, 1/4" BSP, 0-16 bar)

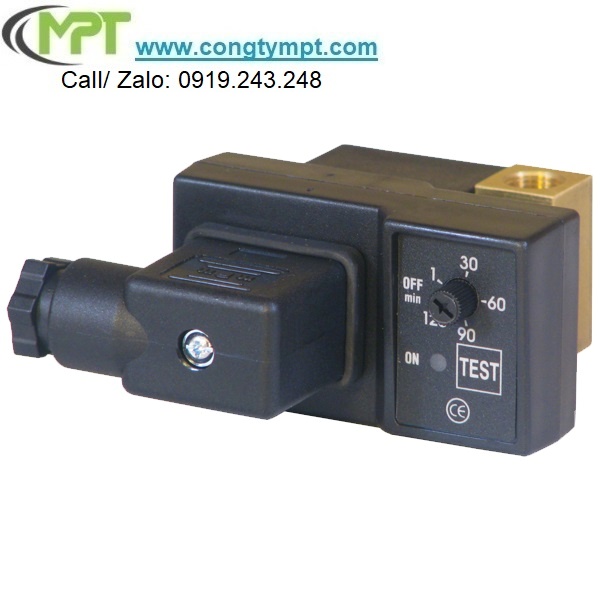

TEC-11
Timer drain for filters and dental compressors.
The TEC-11 Timer Controlled Condensate Drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air filters and small dental (oil free type) compressors.
The clever in-line design allows for perfect installation under all types of compressed air filters and dental compressors, regardless of their capacity or size.
FEATURES
In-line design, offering easy mounting under filters.
Serviceable valve construction, offering you routine maintenance revenues.
Small and compact, offering easy installation on small dental compressors.
Does not air-lock during operation.
Suitable for Compressed air filters up to 16 bar.
Clever in-line design.
TEST (micro-switch) feature.
Fixed ON cycle and an adjustable OFF cycle.
Medium pressure up to 16 bar (optionally up to 21 bar).
Connection sizes 1/8” & 1/4" (BSP or NPT).
Incredibly compact design.
SPECIFICATIONS
MAXIMUM COMPRESSOR CAPACITY | Any size |
PRESSURE RANGE | 0 - 16 bar (higher pressure available, see FLUIDRAIN-HP-S) |
SUPPLY VOLTAGE OPTIONS | 12 - 380 VAC/DC 50/60Hz. (please indicate) |
MEDIUM TEMPERATURE | 1 - 55 °C |
AMBIENT TEMPERATURE | 1 - 55 °C |
TIMER CYCLE RANGE (ON / OFF) | 2 seconds, fixed / 1.2 - 120 minutes, adjustable 0.3 seconds fixed (ON) optionally available. |
TIMER PCB | SMD technology, ensuring consistency in production |
TIMER CYCLE INDICATION | Bright LED illumination |
TEST FEATURE | Yes |
VALVE TYPE | 2/2 way, direct acting |
VALVE ORIFICE | 2 mm |
VALVE SEALS | FPM |
INLET/OUTLET CONNECTIONS | 1/8″ or 1/4″ (BSP or NPT) |
INLET CONNECTION HEIGHT | 1 cm |
SERVICEABLE VALVE | Yes |
VALVE HOUSING MATERIAL | Brass |
POWER CONNECTION | DIN 43650-B/ISO 6952 |
ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
