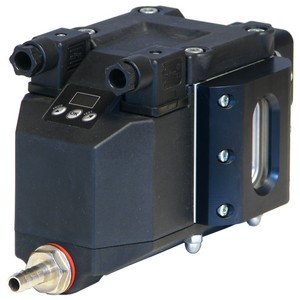

VAN XẢ NƯỚC TỰ ĐỘNG JORC (KAPTIV-SP)
The KAPTIV-SP has a robust industrial housing and can be installed on all compressed air system components regardless their size and climate zone.
Only 1 model required for all systems up to 100 m³/min. compressor capacity.
The alarm feature can be connected to the WARNER ensuring you never miss out on maintenance opportunities.
This comprehensive, high-end condensate draining solution incorporates alarm options, service interval warning options and an anti air-lock feature.
All options can be easily selected and activated by using the touch buttons. The digital display feature indicates the selected option.
A unique feature of the KAPTIV-SP is the condensate level sight port offering you visual confirmation of the condensate level.
SPECIFICATIONS
| MAXIMUM COMPRESSOR CAPACITY | 100 m³/min. |
| PRESSURE RANGE | 0 - 16 bar |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 4.5 mm |
| VALVE SEALS | FPM |
| INLET CONNECTIONS | 1/2″ (BSP or NPT), 2 inlet options |
| OUTLET CONNECTION | 1/2″ (BSP or NPT) |
| INLET HEIGHT | 11 cm (top) and 8.5 cm (side) |
| MEDIUM TEMPERATURE | 1 - 50 °C |
| AMBIENT TEMPERATURE | 1 - 50 °C |
| SUPPLY VOLTAGE OPTIONS | 230VAC / 115VAC / 24VAC / 24VDC |
| POWER AND ALARM CONNECTORS | DIN 43650-B |
| CONDENSATE SIGHTGLAS | Yes |
| SERVICEABLE VALVE | Yes |
| TEST FEATURE | Yes |
| ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
| INTEGRATED MESH STRAINER | Yes |
| ALARM CONTACT OPTIONS | Alarm Normally Closed (NC) & Alarm Normally Open (NO) |
| HOUSING MATERIAL | (Anodised) Aluminium, Polyamide |
FEATURES
Condensate sight port feature, offering you a visual sight of the condensate in the drain.
Integrated mesh strainer to protect the valve, offering protection against blockages.
Extremely easy to disassemble, offering you maintenance simplicity and speed.
All-in-one level sensed draining solution.Capacitive level sensing technology saves air, energy and money.The KAPTIV-SP can be connected to the WARNER.Private labelling option is available.Digital options such as: alarm, service interval and anti air-lock feature.Successful draining of condensate due to large orifice (also heavily emulsified condensate).Easy installation on to compressed air systems up to 16 bar.Visual display of operating status.One model covers up to 100 m³/min. compressor capacity.Direct acting valve assembly, ensuring reliable discharge operation.
